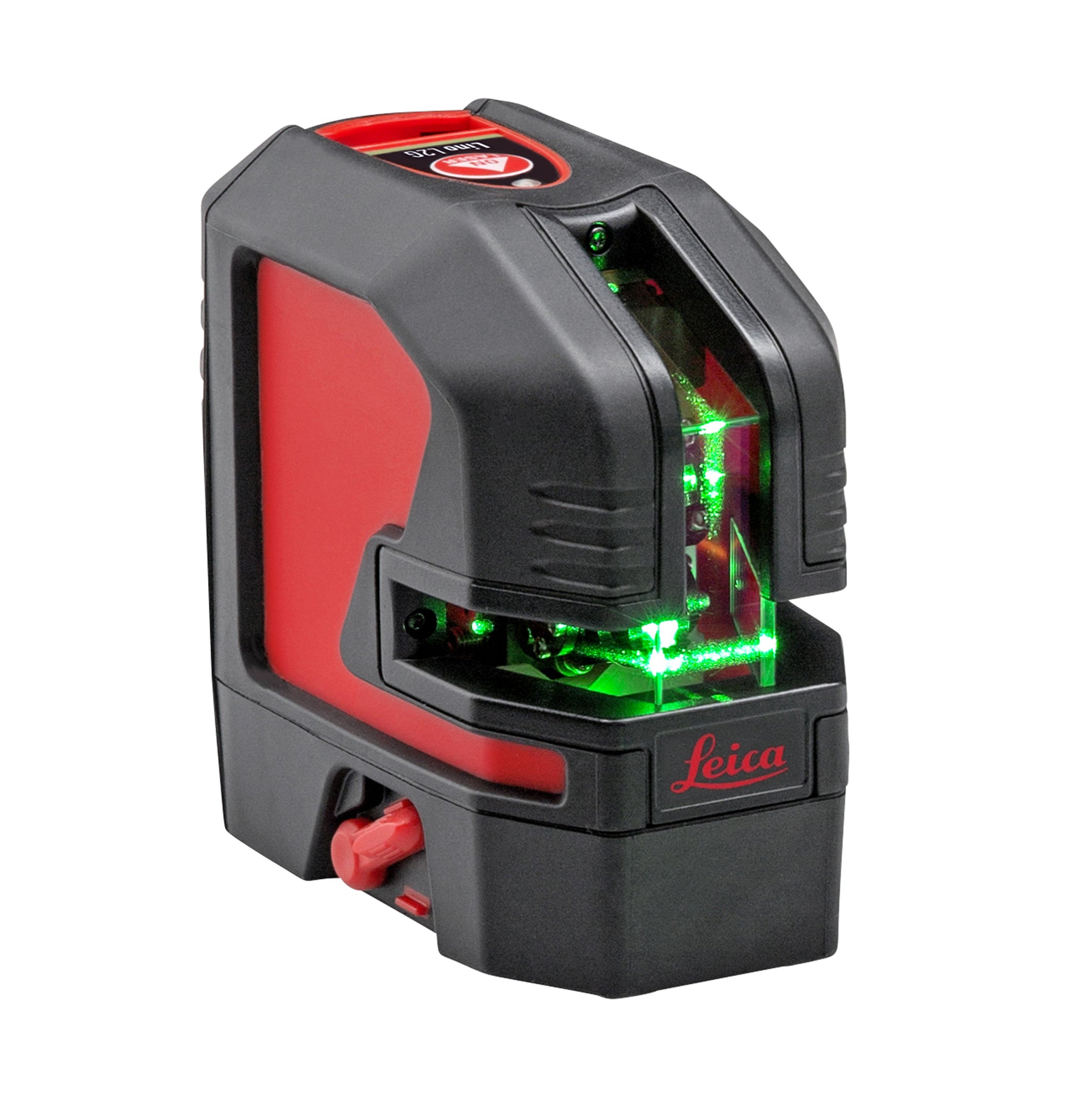

Lino L2P5G Li-Ion

Leica Geosystems

Part Num: 864435

leica lino l2p5 laser lines and dots   ip54
Green beam cross-line and dot laser with Li-Ion Battery, Alkaline Battery Tray, Twist 360 & UAL 130 adapters

See better - 4 times better

The Leica Lino L2P5G provides outstanding visibility of laser lines. New green laser diodes are up to 4 times more visible to the human eye which makes them ideal for bright environments and large rooms. Clear, crisp lines provide less speckle  for maximum of accuracy for interior finishing tasks. The L2P5G has a range of up to 115ft (depending on lighting conditions) with a beam width of less than 0.08 in at 16ft away!

green laser technology



best visibility green laser
leica lino triple power

Triple Power

Get un-interrupted workflow with the Leica Lino L2G triple power concept.

 Lino L2P5G Battery 1 Beam + 2 point 2 beam + 4 point
Li-Ion 5200mAh Battery Pack 28 hours 15 hours
3 X AAA Alkaline 7 hours 4 hours
You can also run the Lino L2P5G plugged into AC while charging the Li-Ion Battery



Rugged enough for your job site

The Leica Lino L2P5G is made of high-grade fiberglass-reinforced materials which makes them robust, dust and spray water protected to IP 54 standards, and drop resistance make these tools suitable for construction site use.
lino optics



The Lino's optics are protected by a high-grade aluminium frame and impact-absorbing rubber components.

Edges, Metal, Poles, Tubes, Rails - No Problem!

The Leica Lino L2P5G includes precision made magnetic TWIST 360 and UAL 130 adapters for quick and easy positioning.

It's in the box

  • Leica Lino L2P5G
  • Twist 360
  • UAL 130
  • Case
  • Li-Ion battery
  • Charger
  • Alkaline battery tray
  • Target Plate
  • Quickstart
  • Calibration Certificate Blue
SCOPE_PICTURE

Technical Data

Beam direction/fan angle Vertical / >170°, Horizontal / >180°
Point Direction Up, down, right, left, front (90°/180°)
Range* 35 m (115 ft)
Range* with receiver 80 m (262 ft)
Levelling accuracy ±0.2 mm/m = ±2.0 mm @ 10m (±0.002 in/ft = ±0.08 in @ 33ft)
Horizontal/Vertical line accuracy ±0.3 mm/m (±0.004 in/ft)
Self-levelling range ± 4 °
Self-levelling time < 3 s
Out-of-level warning Yes - blink lines every 5 s
Levelling system Automatic pendulum lockable
Laser type 525 ± 5 nm, Class 2 (acc. IEC 60825-1)
Protection class IP 54 (IEC 60529) dust and splash water
Drop resistant 6 x 0.5 m (1.64 ft)
Battery type Lino Li-Ion battery pack 5200 mAh / 18.7 Wh (3 alkaline AA)
Operating time with Li-Ion battery 15h (2 beam + 4 point)
28h (1 beam+ 2 point) continuous
Operating time with alkaline batteries 4h (2 beam + 4 point)
7h (1 beam+ 2 point) continuous
Automatic shut-off Available
Dimensions (L x W x H) 110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in)
Operating temperature -10...+50 °C (+14...+122 °F)
Storage temperature -25...+70 °C (-13...+158 °F)
Laser line width at 5m distance < 2 mm (<0.08)
Tripod thread 1/4"(+ 5/8" with adapter)
Pulse power for receiver Yes, auto
